2 Way Ball Valve - Fractional Tube Fitting

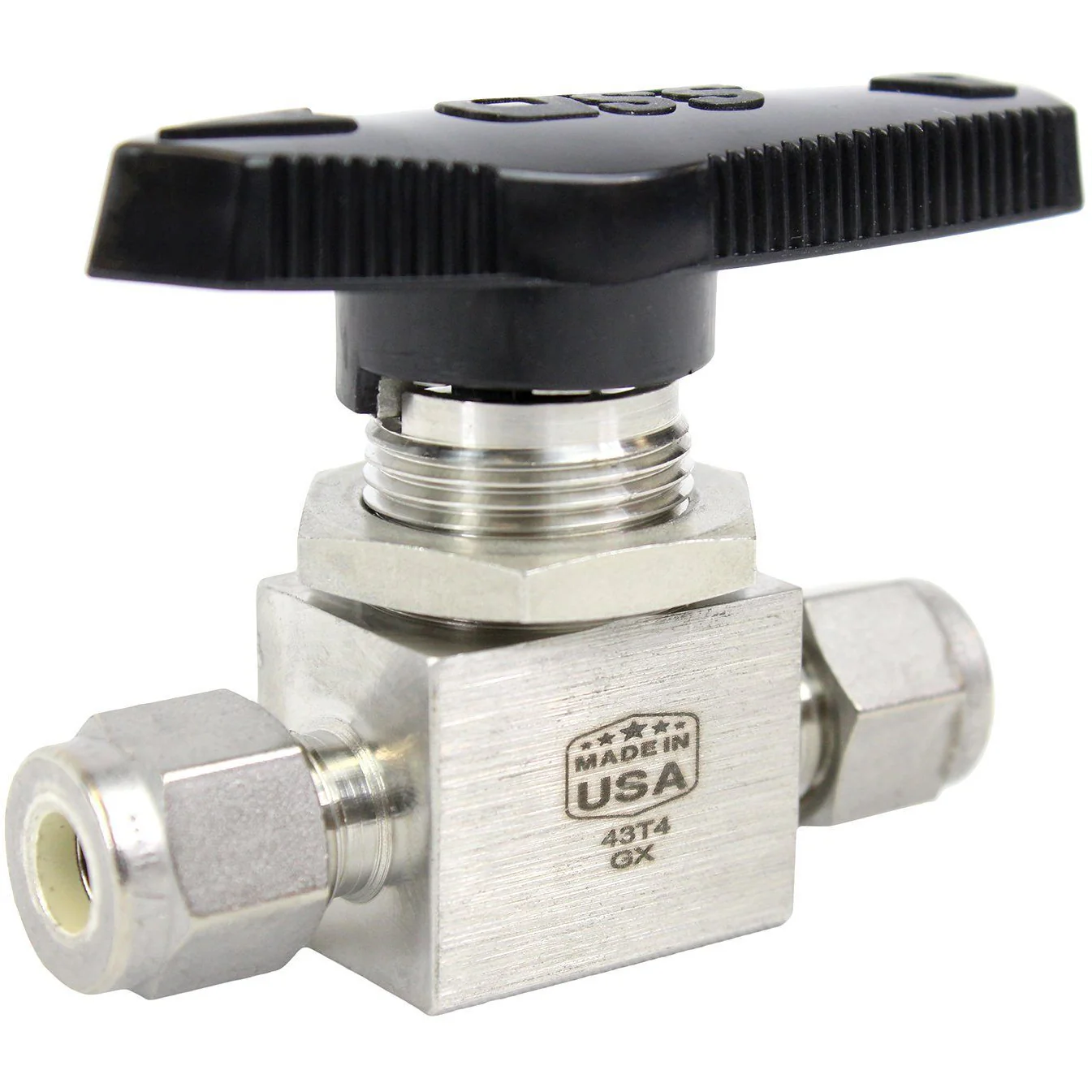

SSP - 2 Way Ball Valve - Fractional Tube Fitting
SSP Instrumentation FlolokĀ® manually operated two-way ball valves provide quick Ā¼ turn directional flow control of fluids in instrumentation and process systems.
Features:
- Directional handle indicates flow direction
- Panel Mountable
- 90-degree actuation
- Straight through flow path
- Micro-finished ball provides positive seal
- Free-floating ball design provides compensation for seat wear for repetitive sealing
- Blow-out proof ball & stem
- Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen
Ā
| Specifications | |
|---|---|
| Body Material | 316 Stainless Steel |
| Pressure Rating @ 100F | 3000 PSIG |
| @37C | 208 BAR |
| @300F | 2500 PSIG |
| @148C | 172 BAR |
| Connection Type 1 | Duolok Tube Fitting |
| Connection Size 1 | Specified by User |
| Connection Type 2 | Duolok Tube Fitting |
| Connection Size 2 | Specified by User |
| Handle Type | Nylon-Stainless Steel Insert |
| Handle Color | Black |
| Packing Material | PTFE |
Ā
