3 Way Ball Valve - Fractional Tube Fitting

SSP - 3 Way Ball Valve - Fractional Tube Fitting

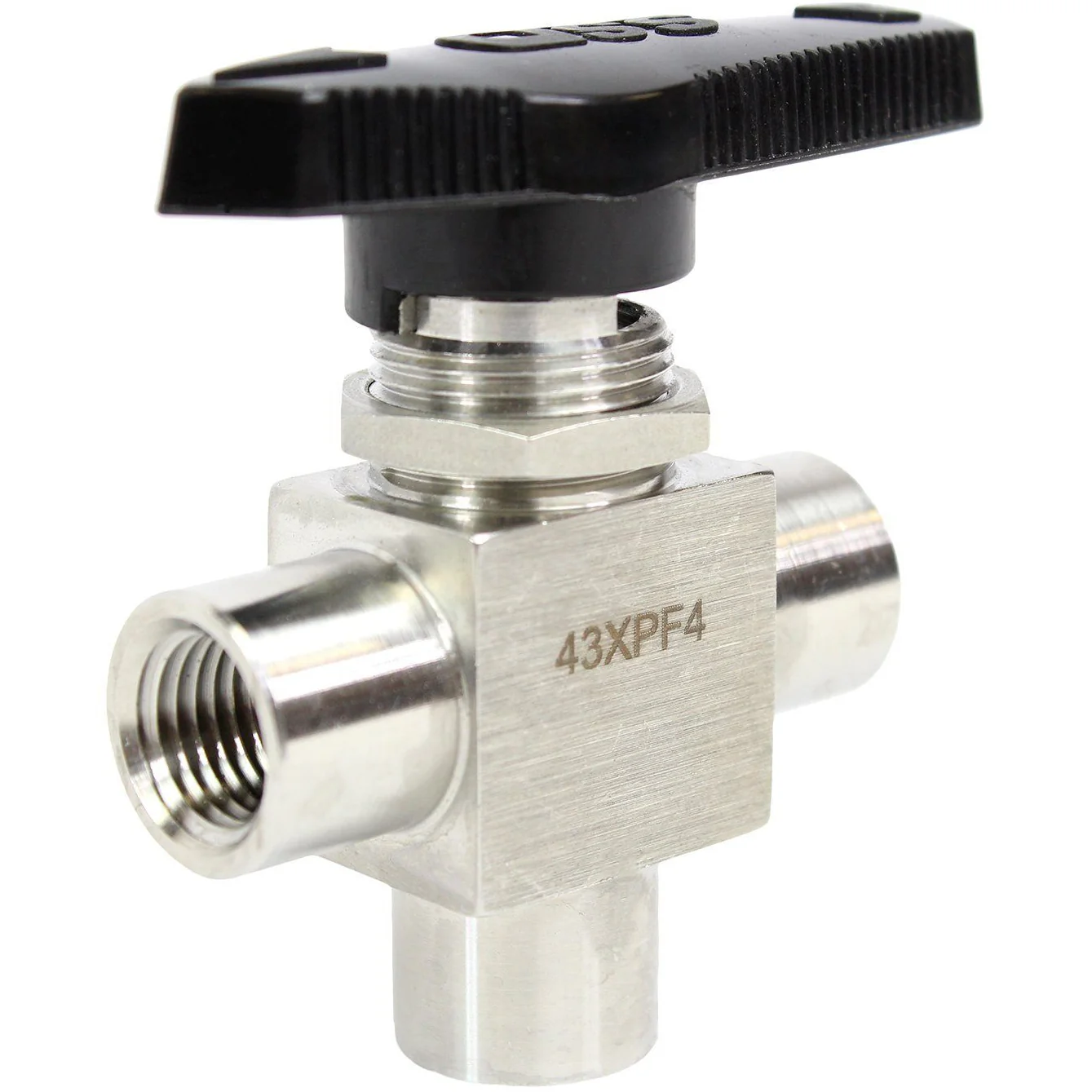

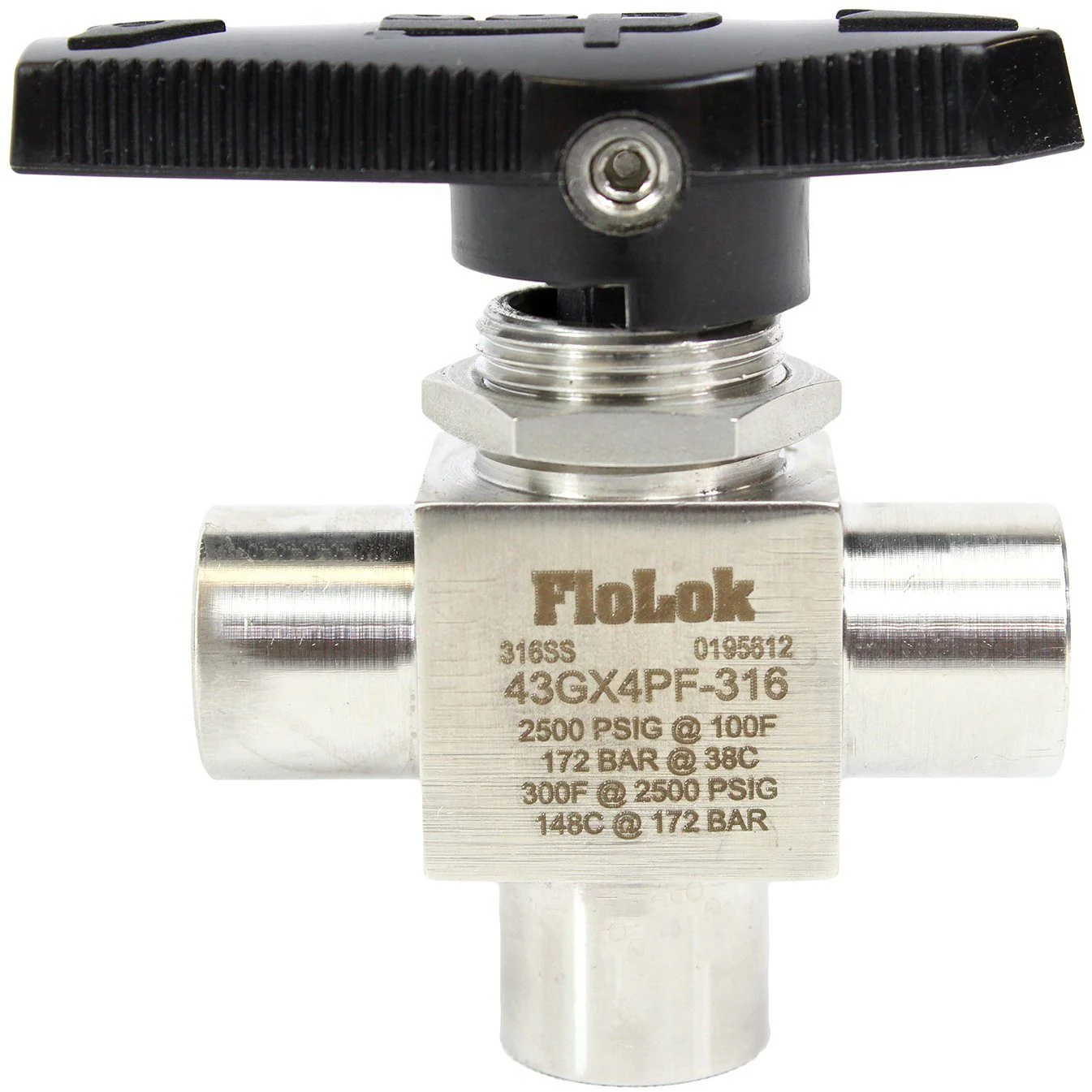

SSP Instrumentation Flolok® manually operated three-way ball valves accept media through the bottom port and allow selection of flow through a selected port.

Features:

• Directional handle indicates flow direction
• Panel Mountable
• 180-degree actuation
• Directional flow path
• Micro-finished ball provides positive seal
• Free-floating ball design provides compensation for seat wear for repetitive sealing
• Blow-out proof ball & stem
• Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen



Specifications
Body Material	316 Stainless Steel
Pressure Rating @ 100F	3000 PSIG
@37C	208 BAR
@300F	2500 PSIG
@148C	172 BAR
Connection Type 1	Duolok Tube Fitting
Connection Size 1	Specified by User
Connection Type 2	Duolok Tube Fitting
Connection Size 2	Specified by User
Connection Type 3	Duolok Tube Fitting
Connection Size 3	Specified by User
Handle Type	Nylon-Stainless Steel Insert
Handle Color	Black
Packing Material	PTFE



SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
